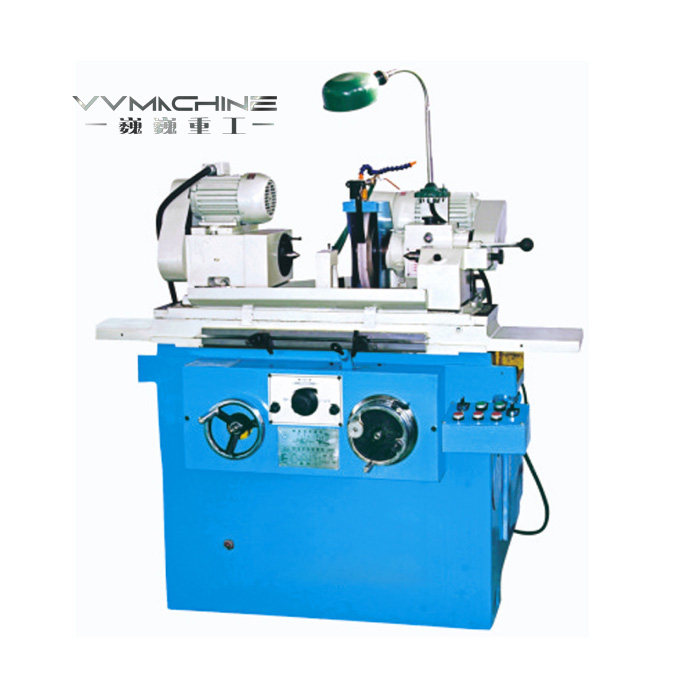

M1408 Grinding Machine

The M1408 grinder is a high-precision and high-efficiency internal and external cylindrical grinder widely used in the mechanical processing industry. This machine tool is mainly used for grinding cylindrical and conical outer circles and inner holes, as well as axial end faces. It is particularly suitable for small and medium-sized production workshops, as well as tool repair workshops.

Main features
High precision machining:
The machine tool has a flexible structure, stable accuracy, and high grinding efficiency.
The machining accuracy meets the national standard (GB/T4685-94), which can meet the requirements of high-precision machining.
High degree of automation:
Equipped with hydraulic drive and electrical control, easy to operate.
The grinding wheel holder adopts a sleeve type integral tile dynamic bearing spindle system, with high rotation accuracy and good rigidity.
Multifunctionality:
Suitable for grinding cylindrical and conical outer circles and inner holes, as well as axial end faces.
Especially suitable for small and medium-sized production workshops, as well as tool and machine repair workshops.
Easy to operate:
The hydraulic drive of the machine tool adopts a screw pump, which runs smoothly and has low noise.
The feed guide uses plastic coated guide rails to improve the stability and service life of the machine tool.
Structural design:
The machine tool bed is made of high-strength cast iron, which has undergone manual aging treatment to ensure long-term stability.
The grinding wheel holder and worktable both use high-precision guide rails to ensure machining accuracy.

Parameter specifications
Grinding diameter range 2-80mm
Grinding aperture range 10-60mm
Effective grinding length 300mm
Effective grinding depth of 80mm
Top needle distance 300mm
Center height 115mm
Effective tool weight 10kg
The distance from the bottom of the bed to the center of the workpiece is 1000mm
The overall dimensions of the machine tool are 1360 × 1240 × 1000mm
Machine weight 1000kg
