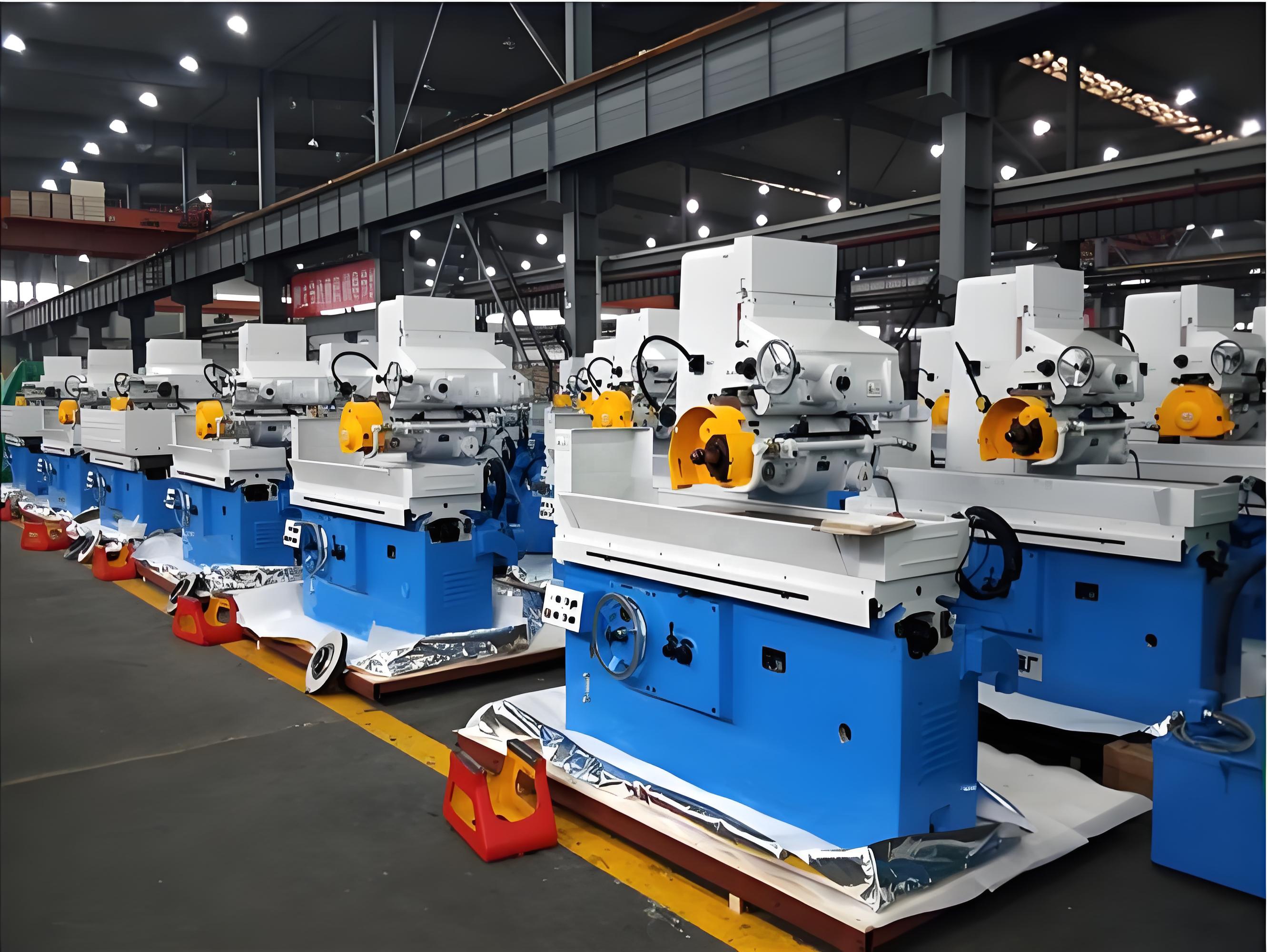

M250 Grinding Machine
M250 grinder is a high-precision and high-efficiency surface grinder widely used in the mechanical processing industry. This machine tool is mainly used for grinding the outer circles and end faces of cylindrical and conical shapes, and is particularly suitable for small and medium-sized production workshops as well as tool repair workshops.
Main features
High precision machining:
The machine tool has a flexible structure, stable accuracy, and high grinding efficiency.

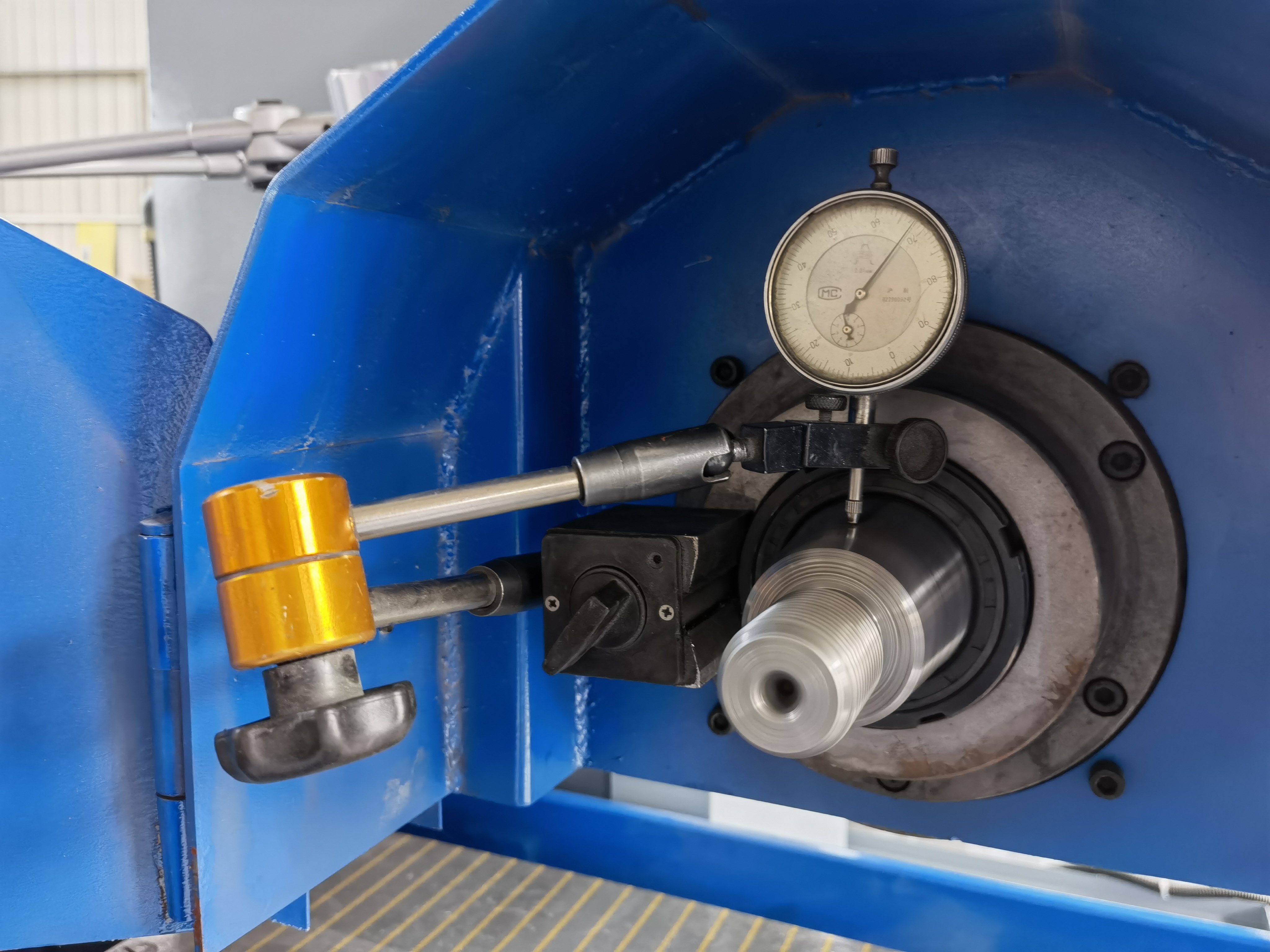

The design of the grinding wheel holder spindle system can fully ensure the precision of grinding processing and has sufficient strength and stiffness.
High degree of automation:
The longitudinal movement of the workbench can be achieved through hydraulic continuously variable transmission or handwheel transmission.
The horizontal movement of the grinding wheel holder has a hydraulic quick advance and retreat function.
Multifunctionality:
Suitable for grinding cylindrical and conical outer circles and end faces.
Especially suitable for small and medium-sized production workshops as well as tool and machine repair workshops.
Easy to operate:
The hydraulic drive of the machine tool adopts a screw pump, which runs smoothly and has low noise.
The feed guide uses plastic coated guide rails to improve the stability and service life of the machine tool.
Structural design:

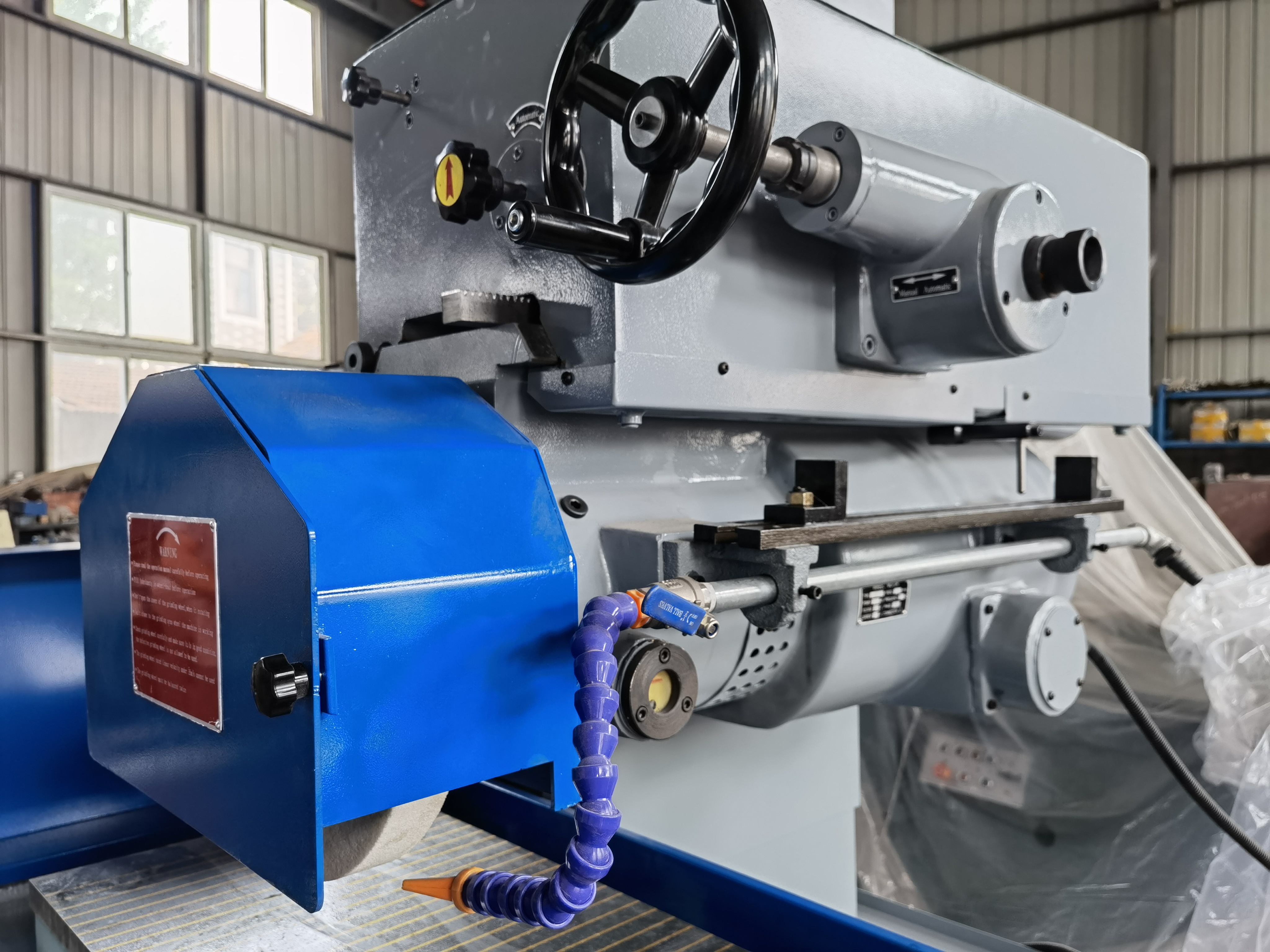

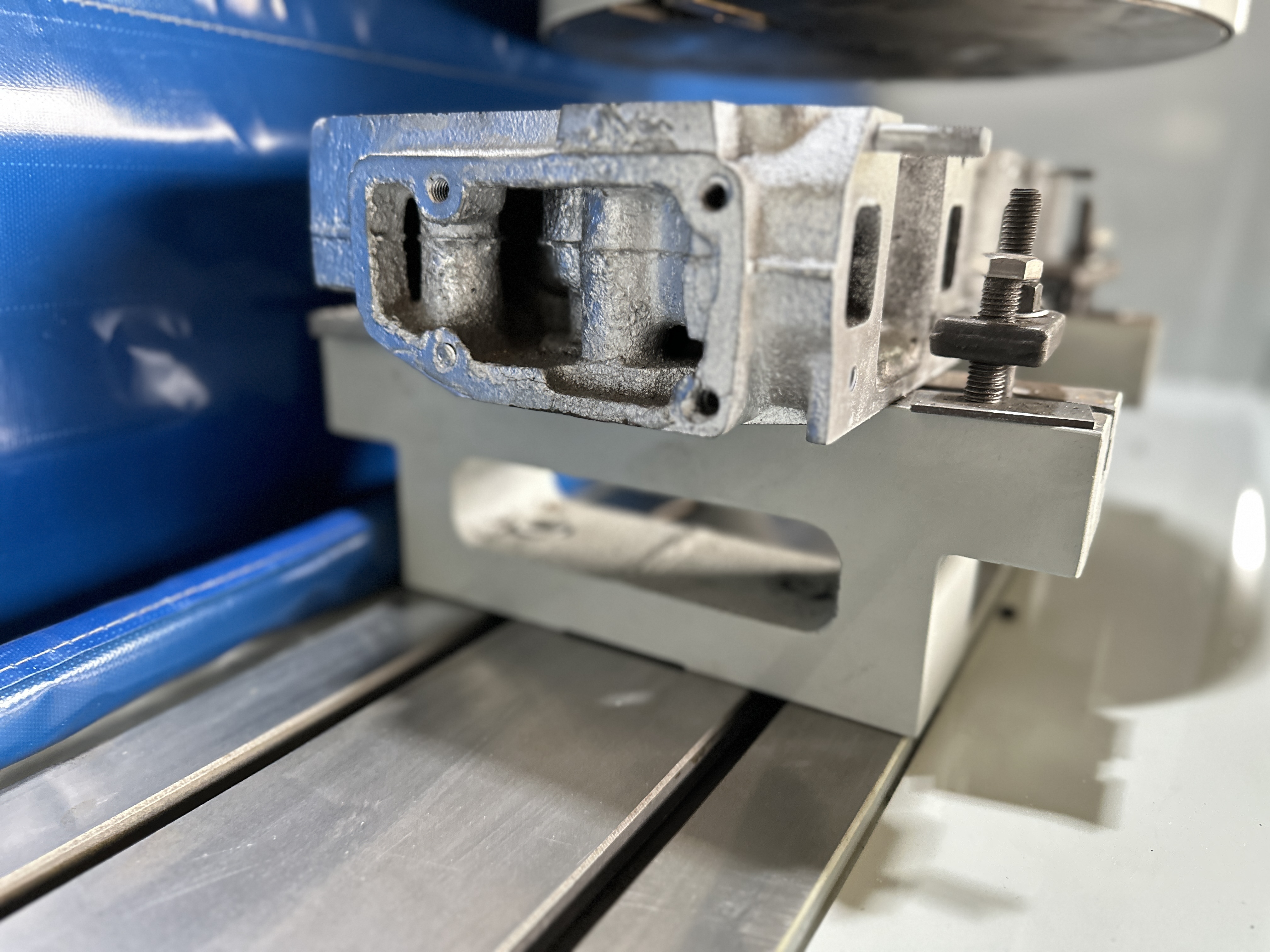

The grinding wheel rack adopts a monolithic structure to increase rigidity.
The workbench consists of an upper workbench and a lower workbench, used for adjusting the taper of the workpiece.
Parameter specifications
Workbench dimensions (length x width) 520 x 250mm
Workbench front and rear travel 260mm
Workbench left and right travel 580mm
Workbench left and right movement speed (stepless) 4-26 m/min
Workbench T-shaped slot (slot number x slot width) 1 x 14mm
The maximum distance from the centerline of the grinding wheel shaft to the worktable is 470mm
Vertical feed handwheel feed rate (handwheel per revolution) 2mm
Vertical feed handwheel feed rate (handwheel per grid) 0.01mm
Horizontal feed handwheel feed rate (handwheel per revolution) 5mm
Horizontal feed handwheel feed rate (handwheel per grid) 0.01mm
Wheel shaft speed 2850 r/min
Grinding wheel size (outer diameter × width × inner diameter) Φ 200 × 20 × Φ 31.75mm
Hydraulic system spindle motor power 1.5 kW
Hydraulic system working pressure 3 Mpa
Hydraulic system oil tank capacity 60 L
The parallelism of the processed surface to the base surface is 300:0.01mm
Surface roughness ≤ Ra0.08 μ m
Machine weight (net weight/gross weight) 1000 kg/1050 kg
The total power of the electric motor is 2.79 kW
Grinding head motor power 1.5 kW
Frequency 50Hz
Dimensions 1700 × 1300 × 1800mm
Packaging box size 1400 × 1200 × 1900mm
