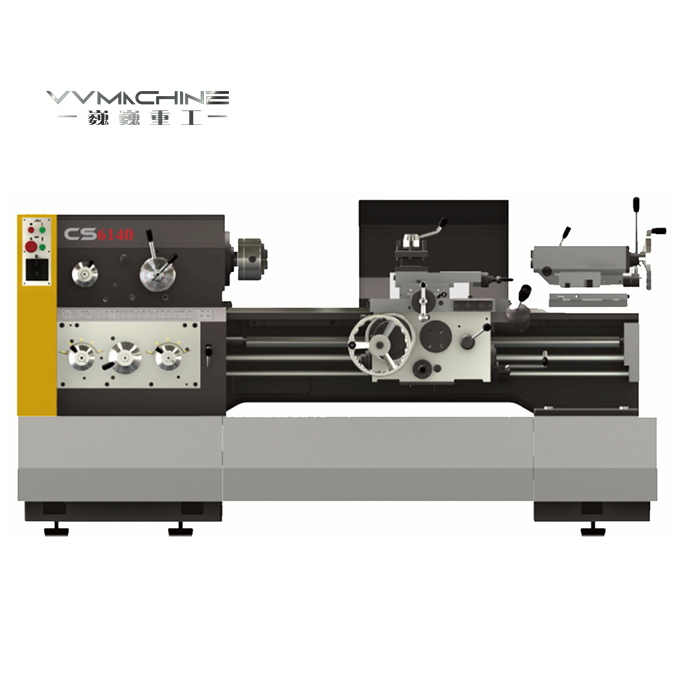

CS6140 horizontal lathe

CS6140 lathe is a high-precision and high-efficiency horizontal lathe widely used in the mechanical processing industry. This machine tool is mainly used for machining various shaft and disc parts, and can complete cutting of inner and outer cylindrical surfaces, end faces, conical surfaces, circular arc surfaces, and threads.

Main features
High precision machining:
The machine tool adopts 3D modeling and finite element method design, and theoretically analyzes and calculates the overall layout and key structures of the machine tool to ensure that it has the characteristics of high rigidity, low thermal deformation, low spindle temperature rise, low vibration, and low noise.
The optimized structural design combined with comprehensive process measures ensures that the machine tool has high machining accuracy and good precision retention.
High rigidity structure:
The machining of key parts such as the bed, headboard, saddle, and tail of the machine tool is carried out using high-precision CNC equipment, ensuring high machining accuracy of the machine tool parts.
High strength cast iron is used, and special materials such as copper and chromium are added. The width of the bed guide rail is large, and the guide rail surface is quenched at medium frequency, which is durable and wear-resistant, effectively improving the wear resistance and stability of the machine tool.
Multifunctionality:
Capable of turning inner and outer cylindrical surfaces, end faces, and other rotating surfaces; Turning various commonly used metric, imperial, modular, and pitch threads; Drilling, reaming, and pulling oil grooves, etc.
The diameter of the spindle through-hole is Φ 52, which can accommodate rods of different diameters.
Easy to operate:
Equipped with manual brake and foot brake, available for different regions and countries with different operating habits.
Electrical systems with different voltages (220V, 380V, 420V) and frequencies (50Hz, 60Hz) are suitable for different regions and countries.

Parameter specifications
The maximum workpiece rotation diameter on the bed is Φ 400mm
Maximum processing length 750/1000/1500/2000/3000mm
Spindle aperture Φ 52mm
Spindle speed range of 24 levels, 9-1600 r/min
Spindle motor power 7.5 kW
Tail socket sleeve diameter/stroke Φ 75/150mm
Tail seat top taper MT5#
Blade position/blade size 4/25X25
Upper knife holder stroke 145mm
Lower knife holder stroke 320mm
