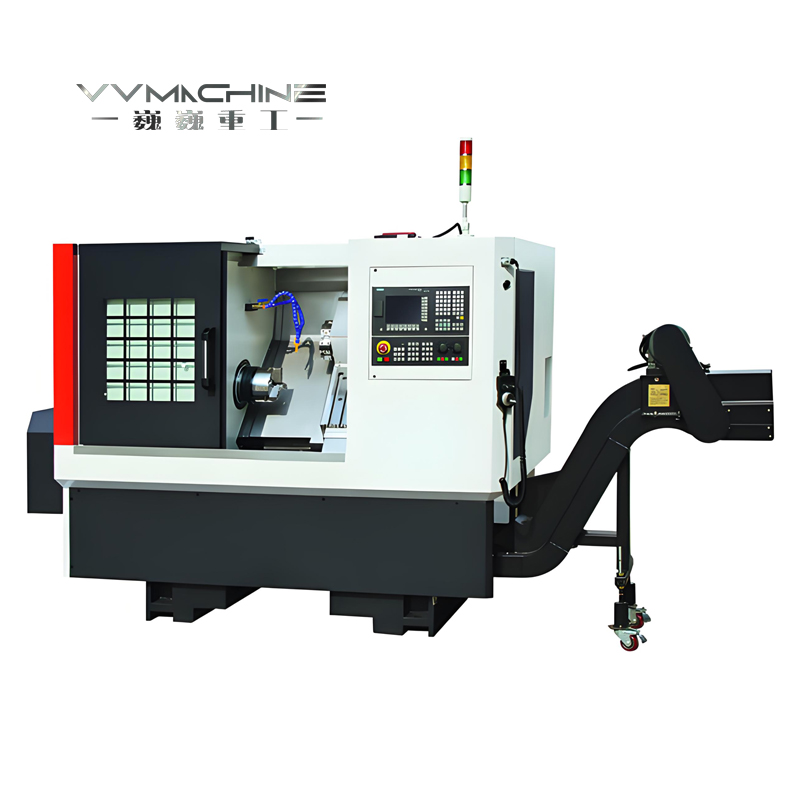

TCK6340 inclined bed CNC lathe

TCK6340 lathe is a high-speed, high-precision, and highly reliable inclined bed CNC lathe. The following is its detailed introduction:

Product Features

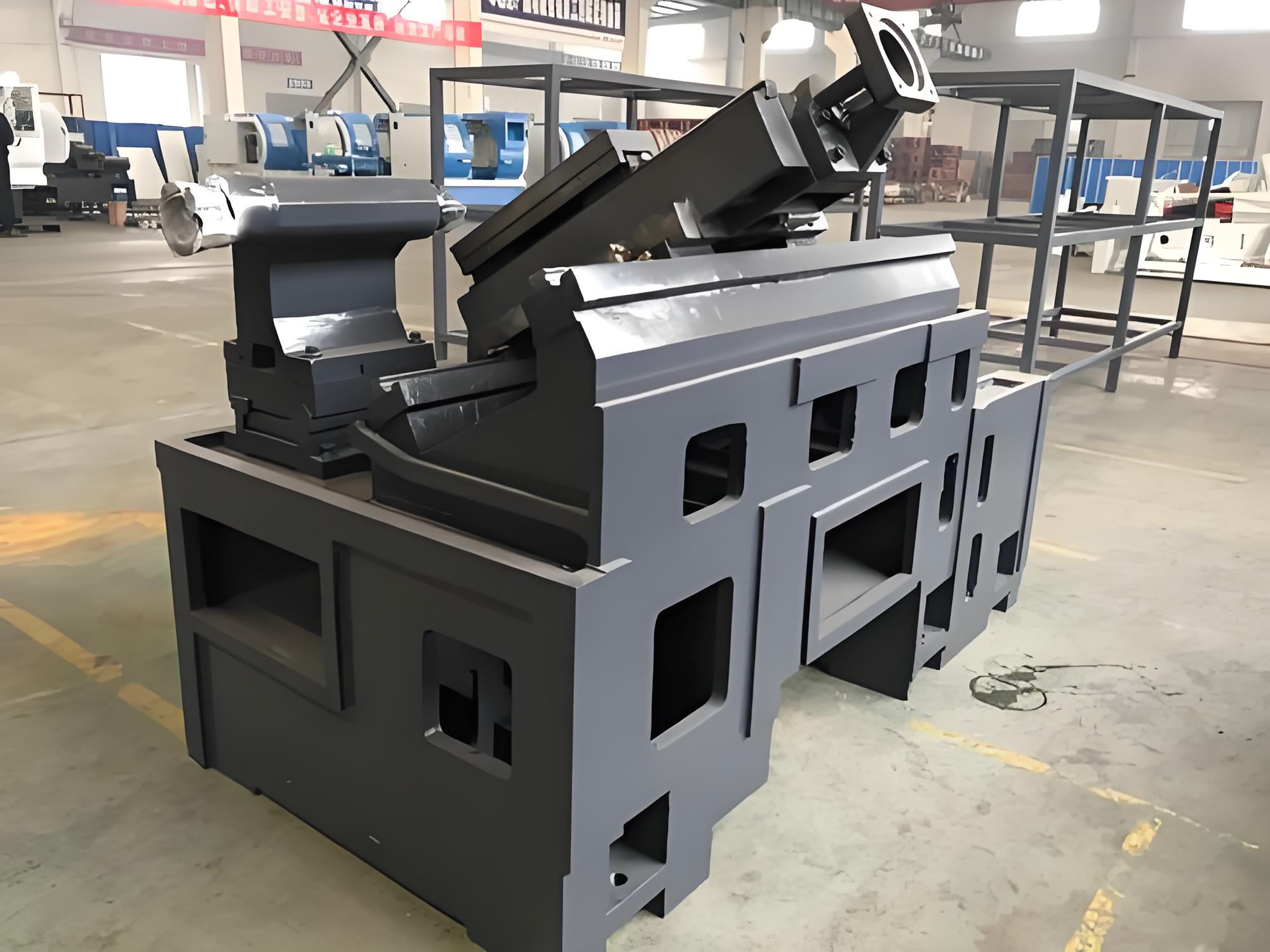

High rigidity structure: The main components such as the bed base, bed frame, and headboard are all cast from high-strength materials to ensure the long-term stability of the machine tool.

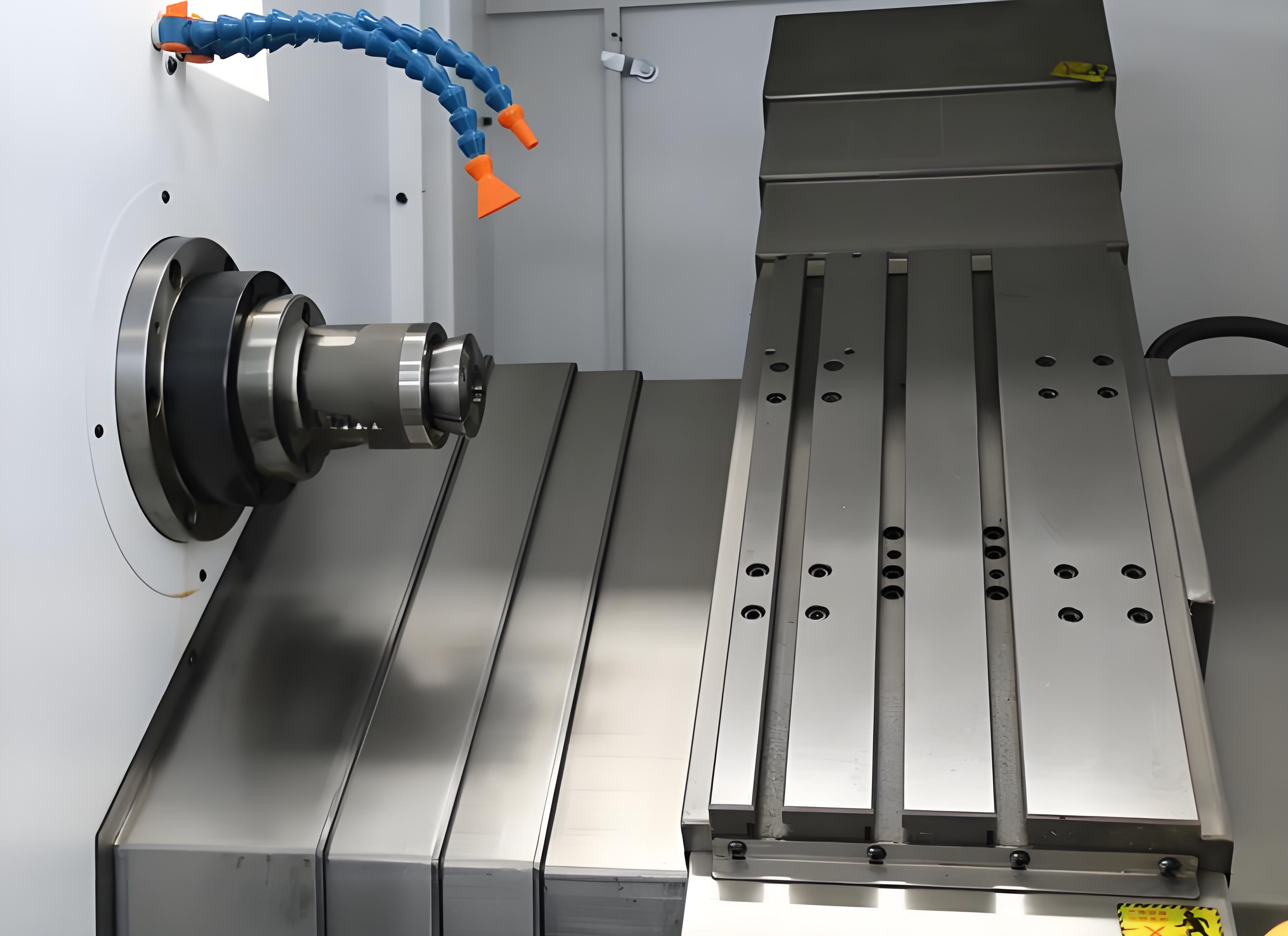

Slant bed design: Adopting a 45 ° integral inclined bed structure, equipped with high-precision pre tensioned Taiwan linear rolling guide rails, it is easy to remove chips and reduce the impact of iron chips on machining accuracy.
High precision spindle: The spindle adopts high-precision pre tensioned bearings, and the maximum speed of the spindle can reach 3500rpm. The spindle speed is infinitely variable, and the diameter of the spindle through-hole is Φ 56mm.
Efficient feed system: The fast movement speed of both the X and Z axes is 24m/min, the cutting feed speed range is 1-15000mm/min, and the X/Z direction repeat positioning accuracy is ± 0.003mm.

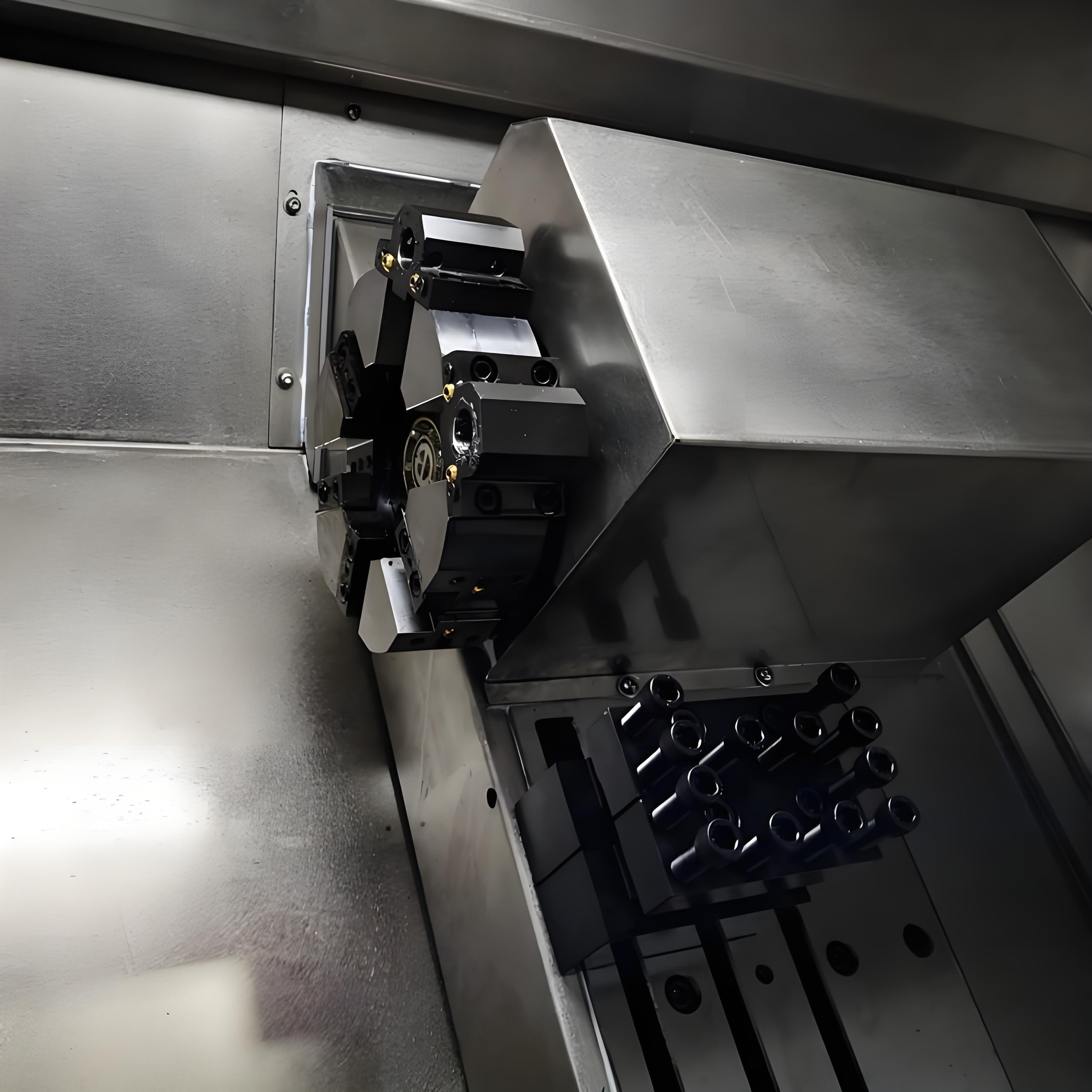

Multiple knife holder configurations: You can choose between a row of knives or a knife tower configuration. The cross section of the knife holder is 20 × 20mm, and there are various knife holder forms to meet different processing needs.

The TCK6340 lathe is suitable for various industries and scenarios, including but not limited:

Mechanical processing: Processing various complex shaped parts, such as linear cylinders, oblique cylinders, arcs, threads, worms, etc.
Automotive manufacturing: Processing automotive components such as engine blocks, crankshafts, etc.
Aerospace: Processing high-precision aerospace components.
Electronic device manufacturing: Processing small metal components in electronic devices.
